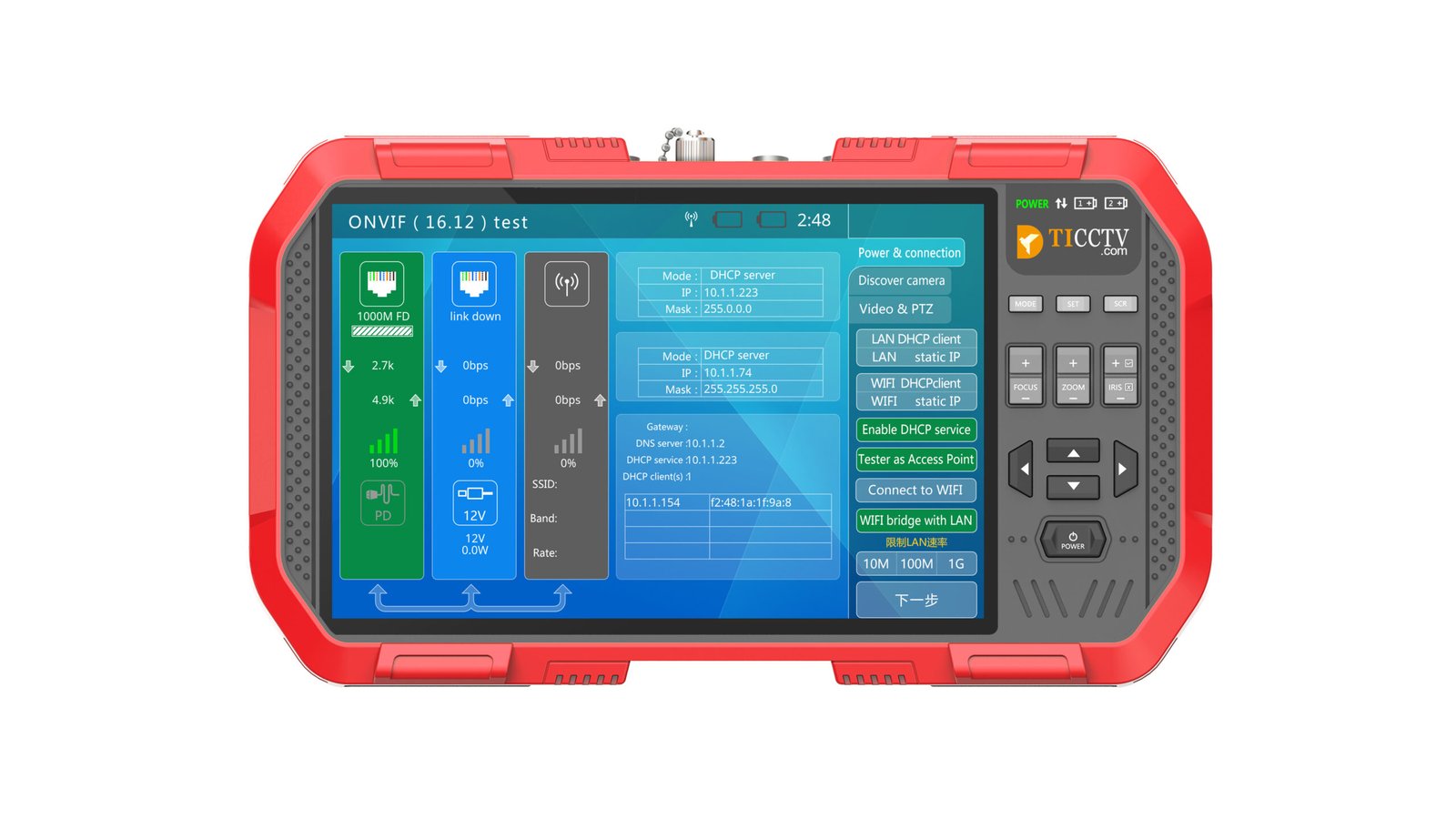

Touch Screen Tester

Touch Screen Tester

Supports HDCVI, AHD, HDTVI and CVBS Digital Surveillance System

PoE or 12 VDC Power Supply

Support Onvif Protocol to Configure IP Address

Audio/Rs-485 Control

Digital Multimeter Function

Tdr Network Cable Test

Wi-Fi Signals Test

分类：

描述

System
Operation System Linux
Language 10 languages including Chinese and English
Operation mode Touchscreen
Auto Standby/Power Off Off/5–60min
Keyboard Sound On/Off
Display Screen 7-in 16.7M color TFT touch screen, RGB interface lcd display: 1920 ×1200, backlight brightness adjustable
Button Keypad: 13 keys
Others: On–off button
LED 2
Update Supports online and local update
Structure&Environment
Net Weight 0.93kg (2.05 lb)
Product Dimensions 235.0 mm × 135.0 mm × 45.0 mm (9.25” × 5.31” × 1.77”) (L × W × H)
Operating Temperature –10 °C to +55 °C (14 °F to 131 °F )
Operating Humidity 30%–90% (RH)
IPC Test
Camera Access ONVIF and Dahua private protocol
Resolution 2 MP (only supports 1920 × 1080@25 fps, 1920 × 1080@30 fps); 4 MP; 6 MP; 4K
Initialization Yes
Image Live view, snapshot and recording, zoom, and H.264/H.265 decoding
Function Control Modify the IPC resolution, IP address and account password. Control IPC to restore factory defaults
Analog Video Test
Video Format HDCVI; HDTVI; AHD; CVBS (NTSC, PAL)
Resolution HDCVI: 720p@25/30/50/60 fps, 1080p@25/30 fps, 2560 ×1440@25/30 fps, 2880 × 1620@25/30 fps
HDTVI: 720p@25/30/50/60 fps, 1080p@25/30fps, 2048×1536@18 fps, 2560 × 1440@25/30 fps
AHD: 720p@25/30 fps, 1080p@25/30fps, 2048 × 1536@ 18/25/30 fps, 2560 × 1440@25/30 fps
CVBS: 720 × 576@25 fps, 720 × 480@30 fps
Function Control OSD menu; PTZ control
Image Live view, snapshot and recording, zoom
Video Signal Generator PAL; NTSC viedo test signal
HDCVI; HDTVI; AHD viedo test signal (720p/1080p)
UTC
UTC Switches from CVBS mode to CVI/TVI/AHD mode;
Switches from one HD format (up to 1080p) to another HD format
Wi-Fi
Standard IEEE 802.11b/g/n/ac
Frequency Range 2.412–2.472 GHz
5.18–5.24 GHz
5.745–5.825 GHz
Power Transmission CE EIRP:
≤15.98 dBm@2400–2483.5 MHz
≤11.98 dBm@5.18 GHz–5.24 GHz
≤9.86 dBm@5.745 GHz–5.825 GHz
FCC output power:
≤15.98 dBm@2400–2483.5 MHz
≤11.98 dBm@5.18 GHz–5.24 GHz
≤9.86 dBm@5.745 GHz–5.825 GHz
DMM
DC Voltage Limit: 2/20/200/600 V
Reading range: ±19999
Min. Resolution: 0.1 mV
Accuracy: ±0.1%+8
AC Voltage Limit: 20/200/600 V
Reading range: ±1999
Min. Resolution: 1 V
Accuracy: ±1.2%+3
DC Current Limit: 20/200/2000 mA
Reading range: ±19999
Min. Resolution: 1 uA
Accuracy: ±0.1%+8*
AC Current Limit: 20/200/2000 mA
Reading range: ±1999
Min. Resolution: 1 uA
Accuracy: ±1.2%+3
Resistance Test Limit: 2 kΩ/20 kΩ/200 kΩ/2 mΩ/20 mΩ
Reading range: 0–19999
Min. Resolution: 0.1 Ω
Accuracy: ±0.1%+8
Capacitance Test Limit: 2 nF/20 nF/200 nF/2 uF/20 uF/200 uF/2 mF/20 mF
Reading range: 0–1999
Min. Resolution: 1 pF
Accuracy: ±4%+5
Diode Voltage Drop Limit: 2 V
Reading range: 0–19999
Min. Resolution: 0.1 mV
Accuracy: ±0.1%+20
Continuity Test Limit: 2 kΩ
Reading range: 0–19999
Min. Resolution: 0.1 Ω
Accuracy: ±0.1%+20
Others
RS-485 Control Communication protocol: More than 30 protocols including Pelco–D/P, Samsung, Panasonic, Lilin, and Yaan
Baud Rate: 150 bps, 300 bps, 600 bps, 1200 bps, 2400 bps, 4800 bps, 9600bps, 19200 bps
Wireless Spectrum Test; Wi-Fi Test; Signal Monitoring
Cable Test Network Cable Test: Test network cable pair length, attenuation and delay deviation.
Test two or more network cables. The connection sequence and network cable number will be displayed on the screen.
HDMI Test 1-ch HDMI video input (720p and 1080p);
1-ch HDMI video output (1920 ×1080p)
Audio Test 1 × audio input, and 1 audio output
Power Supply for Camera 12 VDC 2A
Network Test Features IP address scanning and PING test.
Protocol Code Acquisition Built–in serial port tool, can receive and display RS485 protocol code data sent by control device, and can also send hexadecimal codes.
Optical Power Meter Detector Type: InGaAs
Calibrated Wavelength: 1625/1550/1480/1310n/1300/850 nm
Power Test Range: –70 dBm to +10 dBm
Measurement Accuracy: <±3% dB (–10 dBm, +22 °C/+71.6 °F); <±5% dB (FS, +22 °C/+71.6 °F)
Resolution: Linear: 0.1%, logarithmic : 0.01 dBm
Connector: FC/PC
Port
Power 1 × charge port, 12 VDC
1 × power output port, 12VDC 2A
Audio Port 1 × audio input port, 1 × audio output port
USB 1 × USB, 1 × Micro-USB
Network Port 2 × RJ45 10M/100M/1G network port
SD Card NA
HDMI 1 × HDMI input port
1 × HDMI output port
RS-232 NA
RS-485 1
VLS NA
OPM 1
Multimeter 4
Power Supply
Power Supply 12 VDC 1A/POE 48 V–0.5 A
Battery Two battery compartments.
Each battery compartment can hold a dedicated lithium battery pack with a capacity of 18.5Wh. The combined working time is about 10 hours. (can operate on a single battery).
